A very important part of the LokSound system is the speaker. Therefore, we only use specially developed loudspeakers geared to the sound decoder. Here we recommend the following old saying, the bigger the speaker, the better the sound. As such, we offer loudspeakers in various sizes, one of them will surely fit into your loco. Should there not be enough space, you can also install the speaker in a ‘ghost waggon’ directly behind the loco.

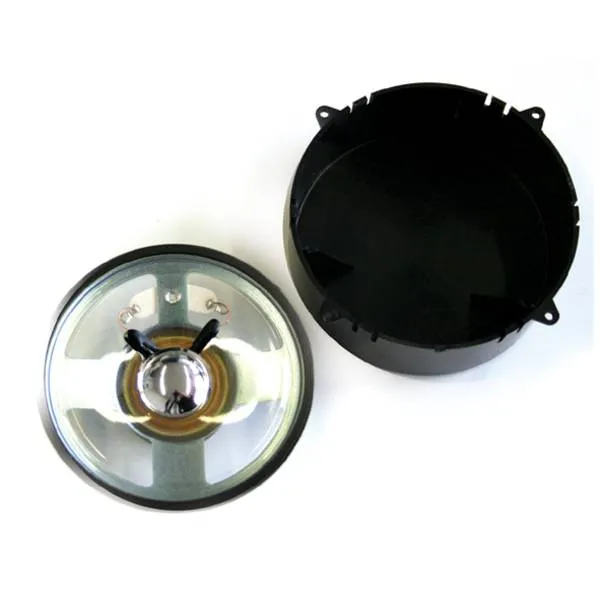

Another crucial accessory is the sound chamber. This helps create the necessary sound pressure for the speaker´s membrane and comes with most loudspeakers.
If you are not sure about which loudspeaker fits into your loco we generally recommend to open the loco and measure the dimensions with a ruler.
Since model railway manufacturers often tend to change (tacitly) the inner modifications of their locos we are not able to make recommendations in general. Therefore rely on your own observations!
You must never use the new 4 Ohms speakers with the previous LokSound V3.5 decoder. The decoder could be destroyed! When the decoder is replaced, the speaker must! be changed as well.

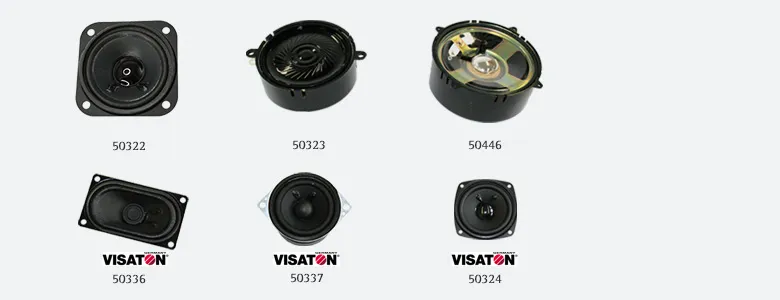

LokSound XL V3.5 decoders work with loud speakers which have an impendance from 8-32 Ohms. ESU offers you a selection of the sizes 40mm, 57mm and 78mm includung sound chamber as well as some high-class Visation XL loudspeakers without sound chamber.
Visaton loudspeakers offer a powerful bass and a high-quality audio playback, whereas ESU loudspeakers are also suitable for open-land vehicles due to their plastic membrane.
