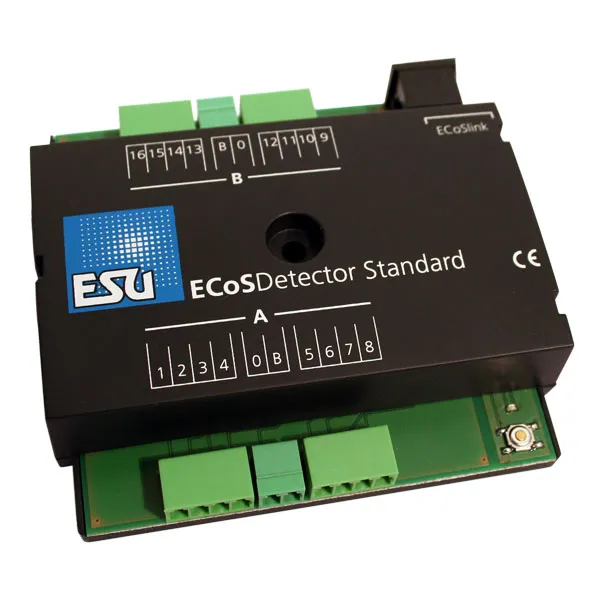

The ECoSDetector Standard is made for all model railroaders who look for a reliable and affordable contact based detector module without needing the expandable functions of the 50094 ECoSDetector. The ECoSDetector Standard is primarily meant to be a substitute for the aged s88 feedback modules: modifications on track work wiring are not necessary.
The ECoSDetector is able to monitor up to 16 track sections by means of track switches, reed contacts, and/or externally supplied switches. Detector inputs do not connect to the rails. For current sensing detection, a 50094 ECoSDetector and/or 50098 ECoSDetector RC is required. Operation with every 3-digit track is possible, no matter if you have a M-, K-, or C-track. Operation with 2-rail track systems is also supported.
The 16 inputs can be used as conventional switch inputs: Connect the reed contacts as well as the contact tracks or switches (and toggle switches) with it and handle the information given with the help of your central station.
Every ECoSDetector Standard can be directly connected to the command station via the ECoSlink bus. Beside all ECoS command stations you can also use the Central Station® (updated with the Central Station® with software upgrade by ESU). The module will be automatically linked to the command station and also graphically configured.
When needed, the ECoSDetector software can be upgraded to add new functionalities. The command station will perform the required updates completely automatically. This will guarantee at all times that the ECoSDetector remains at the most current technical status.
