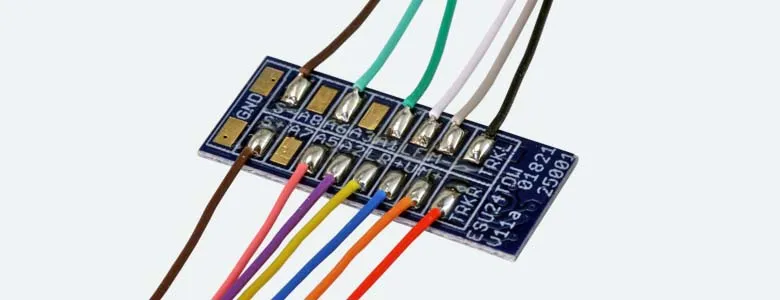

The E24 adapter board is suitable if you want to digitize a very small locomotive without a digital interface using the LokSound 5 Nano. With dimensions of only 19.6 mm x 8.5 mm, the board is exactly the same size as the decoder itself and therefore only increases the thickness as a “sandwich”.

Already soldered connection wires with a length of approx. 88 mm for power pickup, motor and speaker as well as U+, the non-resistor protected powered light outputs FL, RL, AUX1, AUX2, AUX5, and AUX6 ensure easy handling and wiring. Soldering pads AUX7 and AUX8 are powered for additional lights. Soldering pad AUX3 is "PowerPack Control" when used with an ESU 58923 LokSound 5 Nano DCC decoder.
